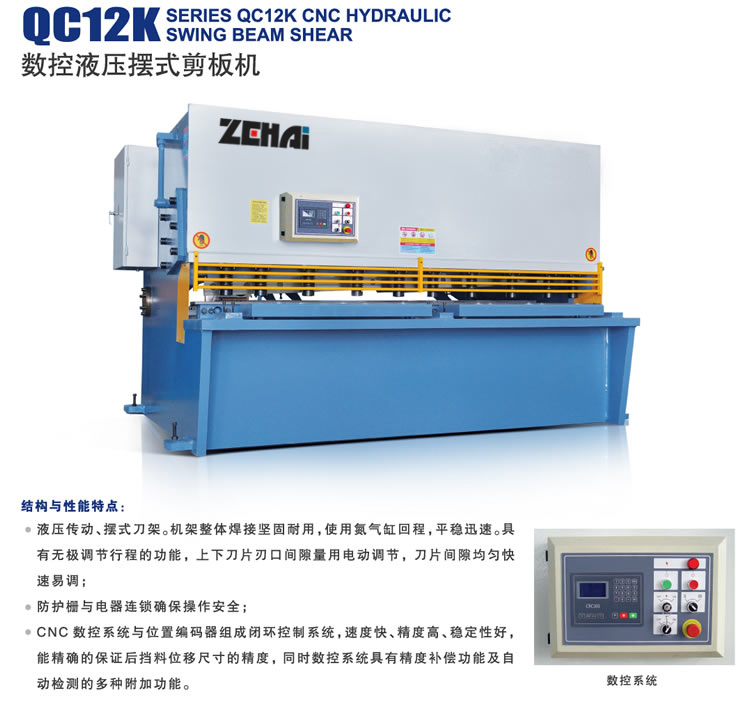

                    性能與特點：

      液壓傳動、擺式刀架。機架整體焊接堅固耐用,使用氮?dú)飧谆爻蹋椒€(wěn)迅速。具有無極調節行程的功能，上下刀片刃口間隙量用電動調節，刀片間隙均勻快速易調;


      防護柵與電器連鎖確保操作安全;


      CNC數控系統與位置編碼器組成閉環控制系統，速度快、精度高、穩定性好，能準確的保證后擋料位移尺寸的精度，同時數控系統具有精度補償功能及自動檢測的多種附加功能。




      Performance and characteristics：


      Hydraulic transmission, pendulum tool post. The overall welding of the frame is sturdy and durable, and the nitrogen cylinder is used to return, which is smooth and fast. It has the function of steplessly adjusting the stroke. The clearance between the upper and lower blades is electrically adjusted, and the blade clearance is evenly and quickly adjusted.


      Protective fence and electrical chain ensure safe operation;


      The CNC control system and position encoder form a closed-loop control system with fast speed, high accuracy and good stability, which can accurately ensure the accuracy of the size of the back gauge displacement. At the same time, the CNC system has a variety of additional functions such as precision compensation and automatic detection.
















                    標準配置






                    下載中心





























      技術參數表 【特殊規格】可根據客戶需求提供參數






	名稱/規格
	剪板尺寸

	(厚×寬)(毫米)
	剪切角(°)
	行程次數

	min-1
	后擋料范圍

	mm
	主電機功率

	Kw




	QC12Y 4×2500
	4×2500
	1°30′
	18
	20～600
	4.0




	QC12Y 4×3200
	4×3200
	1°30′
	18
	20～600
	5.5




	QC12Y 4×4000
	4×4000
	1°30′
	12
	20～600
	5.5




	QC12Y 4×5000
	4×5000
	1°30′
	10
	20～600
	5.5




	QC12Y 4×6000
	4×6000
	1°30′
	7
	20～800
	7.5




	QC12Y 6×2500
	6×2500
	1°30′
	18
	20～600
	7.5




	QC12Y 6×3200
	6×3200
	1°30′
	14
	20～600
	7.5




	QC12Y 6×4000
	6×4000
	1°30′
	12
	20～600
	7.5




	QC12Y 6×5000
	6×5000
	1°30′
	10
	20～600
	7.5




	QC12Y 6×6000
	6×6000
	1°30′
	7
	20～800
	7.5




	QC12Y 8×2500
	8×2500
	1°30′
	14
	20～600
	7.5




	QC12Y 8×3200
	8×3200
	1°30′
	10
	20～600
	7.5




	QC12Y 8×4000
	8×4000
	1°30′
	8
	20～600
	11




	QC12Y 8×5000
	8×5000
	1°30′
	7
	20～800
	15




	QC12Y 8×6000
	8×6000
	1°30′
	6
	20～800
	15




	QC12Y 8×8000
	8×8000
	1°30′
	5
	20～800
	15




	QC12Y 10×2000
	10×2000
	1°30′
	12
	20～600
	11




	QC12Y 10×2500
	10×2500
	1°30′
	10
	20～600
	11




	QC12Y 10×3200
	10×3200
	1°30′
	10
	20～600
	11




	QC12Y 10×4000
	10×4000
	2°
	8
	20～600
	15




	QC12Y 12×2000
	12×2000
	2°
	12
	20～600
	15




	QC12Y 12×2500
	12×2500
	2°
	10
	20～600
	15




	QC12Y 12×3200
	12×3200
	2°
	9
	20～600
	15




	QC12Y 12×4000
	12×4000
	2°
	8
	20～800
	18.5




	QC12Y 12×5000
	12×5000
	2°
	7
	20～800
	22




	QC12Y 12×6000
	12×6000
	2°
	6
	20～800
	22




	QC12Y 12×8000
	12×8000
	2°
	5
	20～800
	22




	QC12Y 16×2500
	16×2500
	2°
	8
	20～600
	18.5




	QC12Y 16×3200
	16×3200
	2°
	7
	20～600
	18.5




	QC12Y 16×4000
	16×4000
	2°30′
	5
	20～800
	18.5




	QC12Y 20×2000
	20×2000
	2°30′
	8
	20～800
	22




	QC12Y 20×2500
	20×2500
	2°30′
	6
	20～800
	22




	QC12Y 20×3200
	20×3200
	2°30′
	6
	20～1000
	30




	QC12Y 20×4000
	20×4000
	3°
	6
	20～1000
	30




	QC12Y 25×2000
	25×2000
	3°
	6
	20～1000
	30




	QC12Y 25×2500
	25×2500
	3°
	6
	20～1000
	30




	QC12Y 25×3200
	25×3200
	3°30′
	6
	20～1000
	37




	QC12Y 30×2500
	30×2500
	3°30′
	6
	20～1000
	37




	QC12Y 30×3200
	32×3200
	3°
	5
	20～1000
	45




	QC12Y 40×2500
	40×2500
	4°
	5
	30～1000
	55




	QC12Y 40×3200
	40×3200
	4°
	5
	20～1000
	55




	QC12Y 50×3000
	50×3000
	3°
	5
	20～1000
	90×3




	QC12Y 50×6000
	50×6000
	3°
	5
	20～1000
	90×5




	QC12Y 60×3500
	60×3500
	3°30′
	5
	20～1000
	90×4
